Specification:
Type: LED Dimmer Switch
Color: White
Control Mode: Knob-Operated
Connector: DC 5.5x2.1mm male/female jack
Operate Voltage: DC12-24V
Max Static Power: 1W
Max Output Current: 6A
Output Power: 5V(30W), 12V(72W), 24V(144W)
Output: 1 channel
Connection Type: Common Anode
Working Temperature: -20 to 60 degree Celsius
Size: L61xW33xH32mm
Weight: 36g

Function: The 1-channel inline dimmer is a kind of controller which can realize stepless dimming. Knob operated design can adjust the light to the appropriate brightness according to the actual needs.

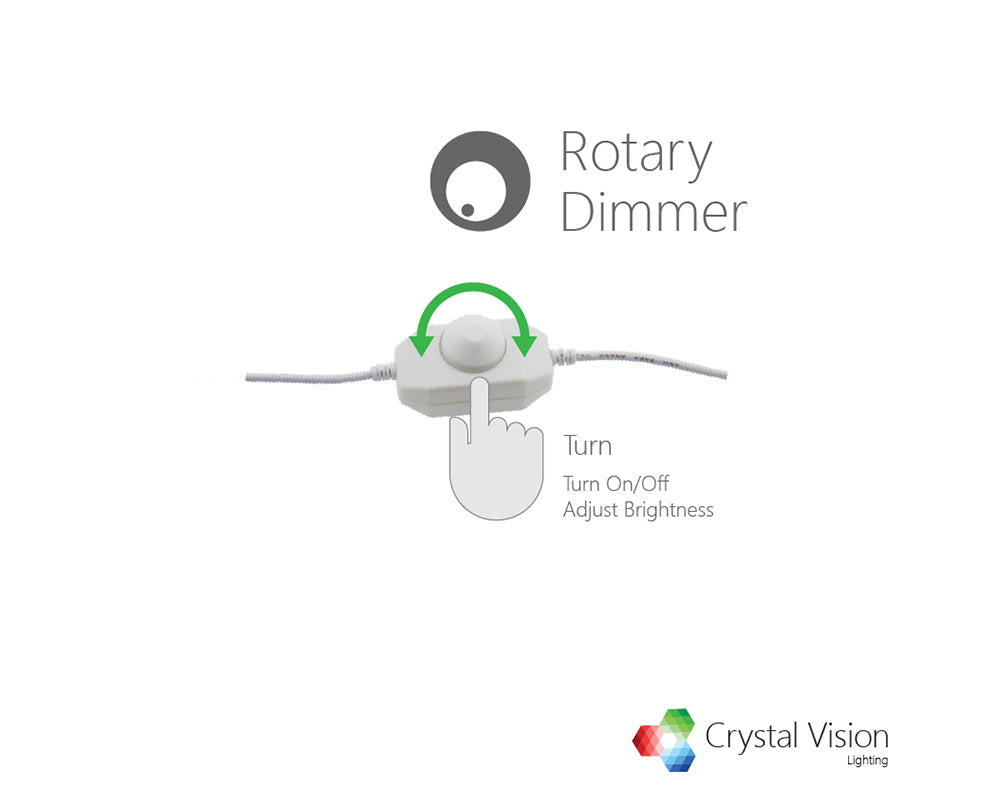

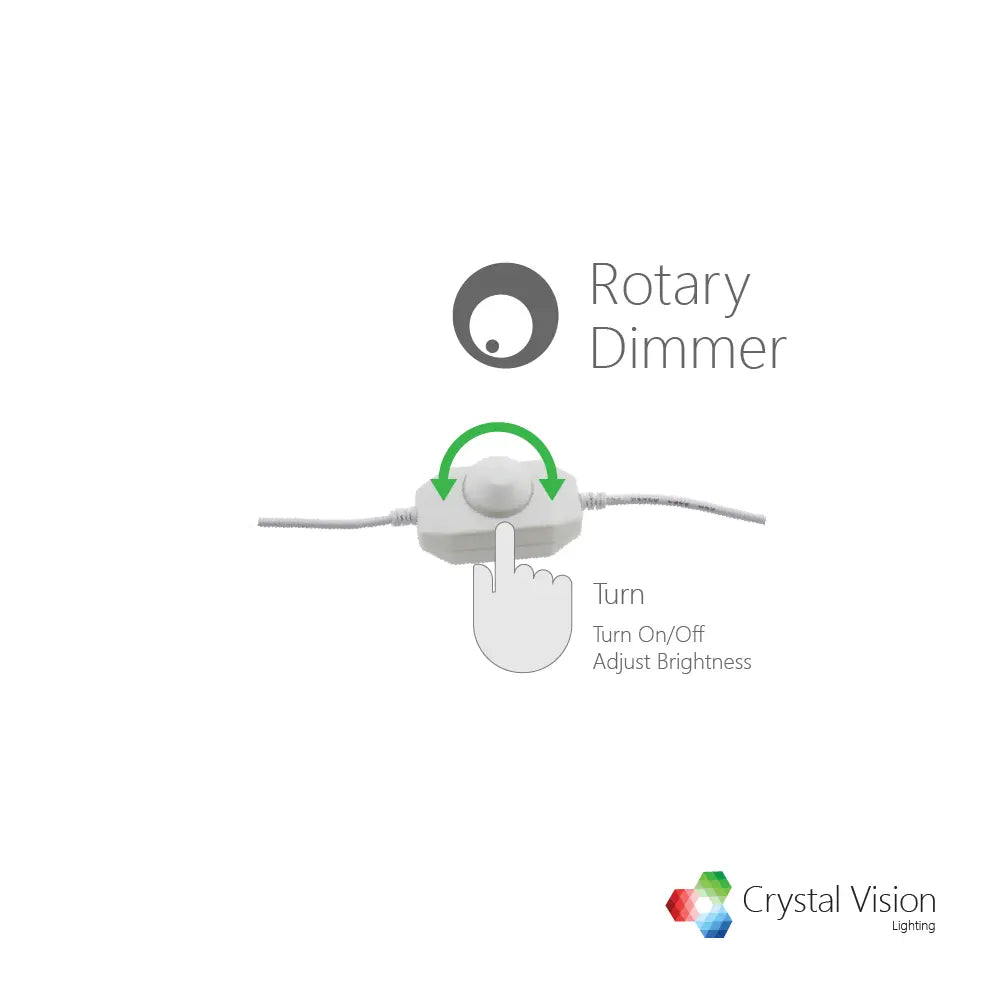

Knob Operated Control: Rotate the knob to turn on/off the light brightness gradually to the appropriate light intensity. Easy to use.
DC Standard Plug: 5.5x2.1mm male / female power plug connector, professional appearance for power cabling, save time and more secure cable connection.
Wide Application: Mainly Used To Adjust The Brightness Of Single Color LED Lights, Such as 3528, 5050, 5630 Strip LED ligths for urban lighting, holiday atmosphere, KTV, gym, car lights, etc.

Package Included:
1 x LED Dimmer Switch

• 1pc White LED Dimmer Switch, be widely used in single color led lamp adjust brightness and switch on/off. Perfect tools for most lighting purpose.


• DC12-24V; Max Static Power: 1W; Max Output Current: 6A; Output Power: 5V(30W), 12V(72W), 24V(144W); Output: 1 channel


• Rotate the knob to turn on/off the light brightness gradually to the appropriate light intensity. Easy to use.


• 5.5x2.1mm male / female power plug connector, professional appearance for power cabling, save time and more secure cable connection.


• Mainly Used To Adjust The Brightness Of Single Color LED Lights, Such as 3528, 5050, 5630 Strip LED ligths for urban lighting, holiday atmosphere, KTV, gym, car lights, etc.
